MAC - TА

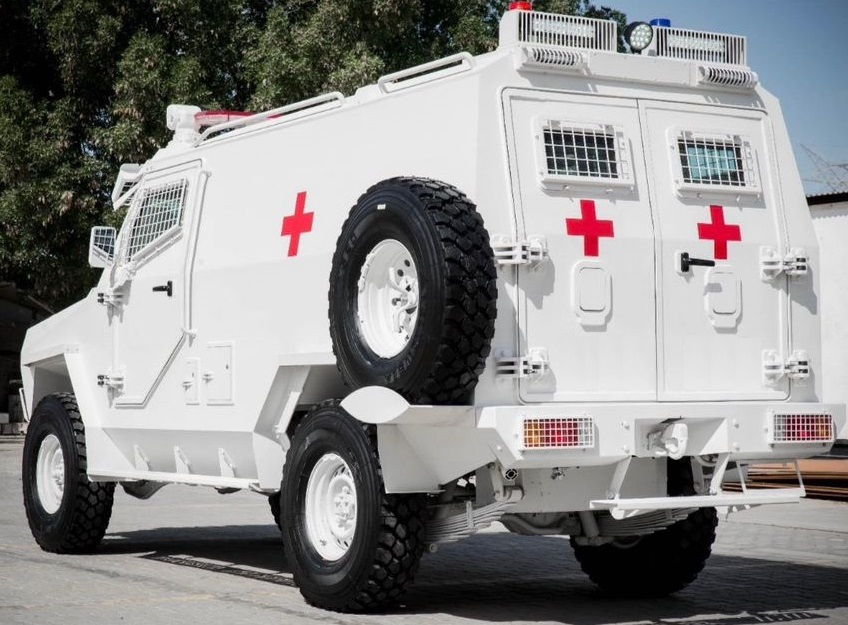

MAC – TА «Ambulance»
Name car: MAC-TА
Basic chassis: TOYOTA LAND-CRUISER 79-SERIES
Level reservation: CEN level B7
Year: 2023
The versatility of the car base Toyota Land Cruiser 79 makes it possible to implement various projects and purposes of the designed armored vehicle. This version of the multi-purpose pickup truck allows you to use the rear body of the car to transport BC or install platforms for various types of weapons.
Engine and transmission
Engine type: diesel 4.5 L V8
Number of cylinders: 8
Wheel formula: 4x4
Power: 195 hp. at 3300 rpm
Torque: 430 Nm (43.8 kg-m) at 1200-3200 rpm
Fuel tank capacity: 180 (90+90) liters (double tanks)
Gearbox type: 5-speed, mechanical
Number of gears: 5 forward and 1 reverse.
Suspension and braking system
Suspension: reinforced springs, springs, shock absorber struts
Type of brakes: front - disc, ventilated; behind - a drum
ABS: Yes, factory installed
Type of brakes: front - disc, ventilated; behind - a drum
ABS: Yes, factory installed
Wheels and tires
Wheel type: steel 16 inches
"Run-Flat" system, military type. Installed on all wheels, including the spare
Size: 255/100/R16
Number of wheels: 4 + spare
"Run-Flat" system, military type. Installed on all wheels, including the spare
Size: 255/100/R16
Number of wheels: 4 + spare
Overall dimensions and weight of the car
Length: 5280 mm
Height: with tower: 2854 mm; without tower 2295 mm
Width: 1890 mm
Wheel base: 3180 mm
Total mass (without cargo and crew): 4820 kg (with tower)
Ground clearance: 225 mm
Front overhang angle: 32°
Rear overhang angle: 24°
Height: with tower: 2854 mm; without tower 2295 mm
Width: 1890 mm
Wheel base: 3180 mm
Total mass (without cargo and crew): 4820 kg (with tower)
Ground clearance: 225 mm
Front overhang angle: 32°
Rear overhang angle: 24°
Salon
Total number of seats: 10 people, including the driver
Complete set of seats: 2x – in the cabin / 2x – behind the folding cabin seats / 4x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 6x on the sides / 2x on the back
Emergency hatch: 1 combined with a machine gun tower
Machine gun turret: 360° rotation. Mechanical 0 mm
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4x side / 1x rear, 1-leaf
Fire extinguisher: powder 4.5 kg
Complete set of seats: 2x – in the cabin / 2x – behind the folding cabin seats / 4x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 6x on the sides / 2x on the back
Emergency hatch: 1 combined with a machine gun tower
Machine gun turret: 360° rotation. Mechanical 0 mm
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4x side / 1x rear, 1-leaf
Fire extinguisher: powder 4.5 kg
