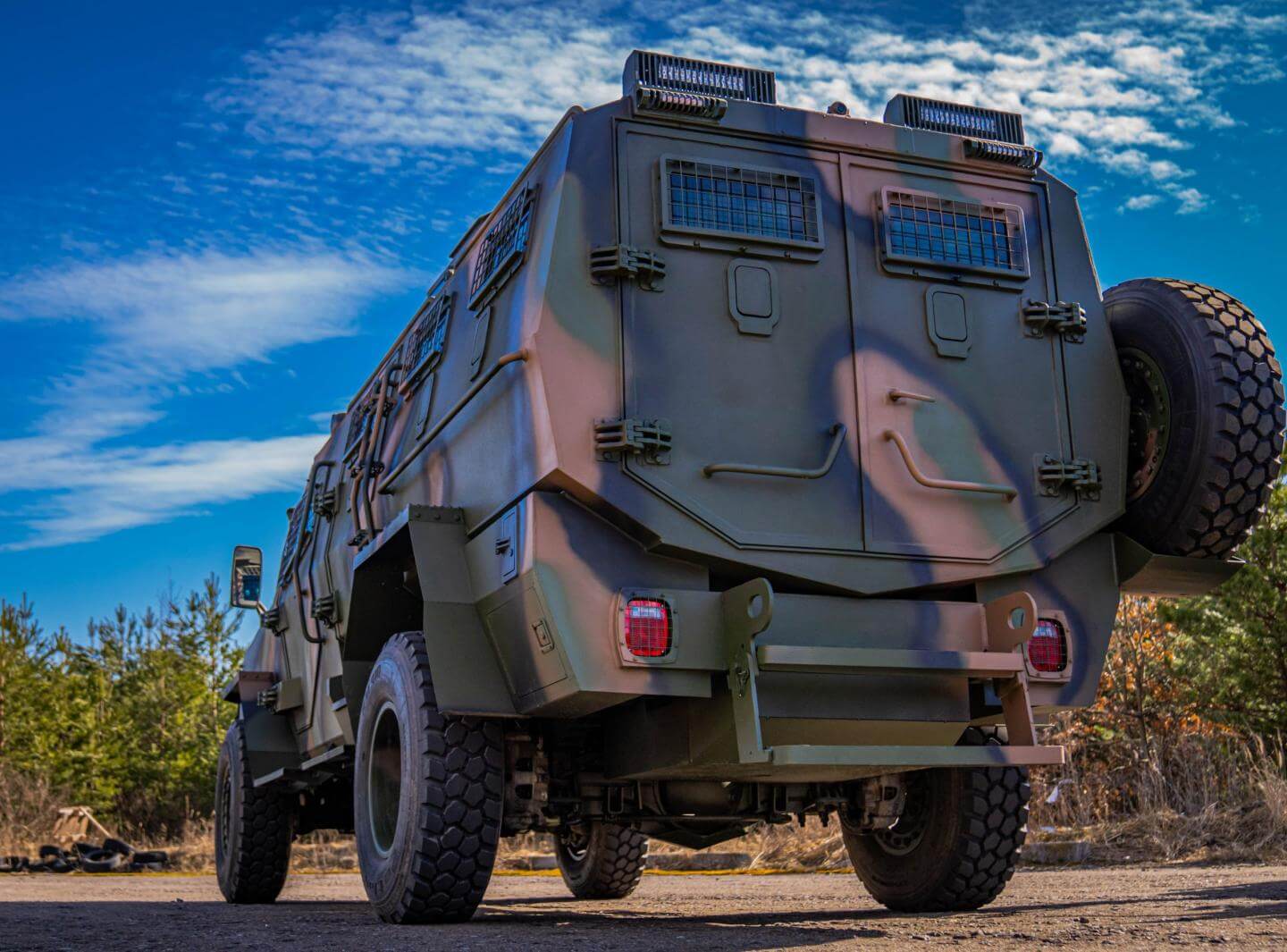

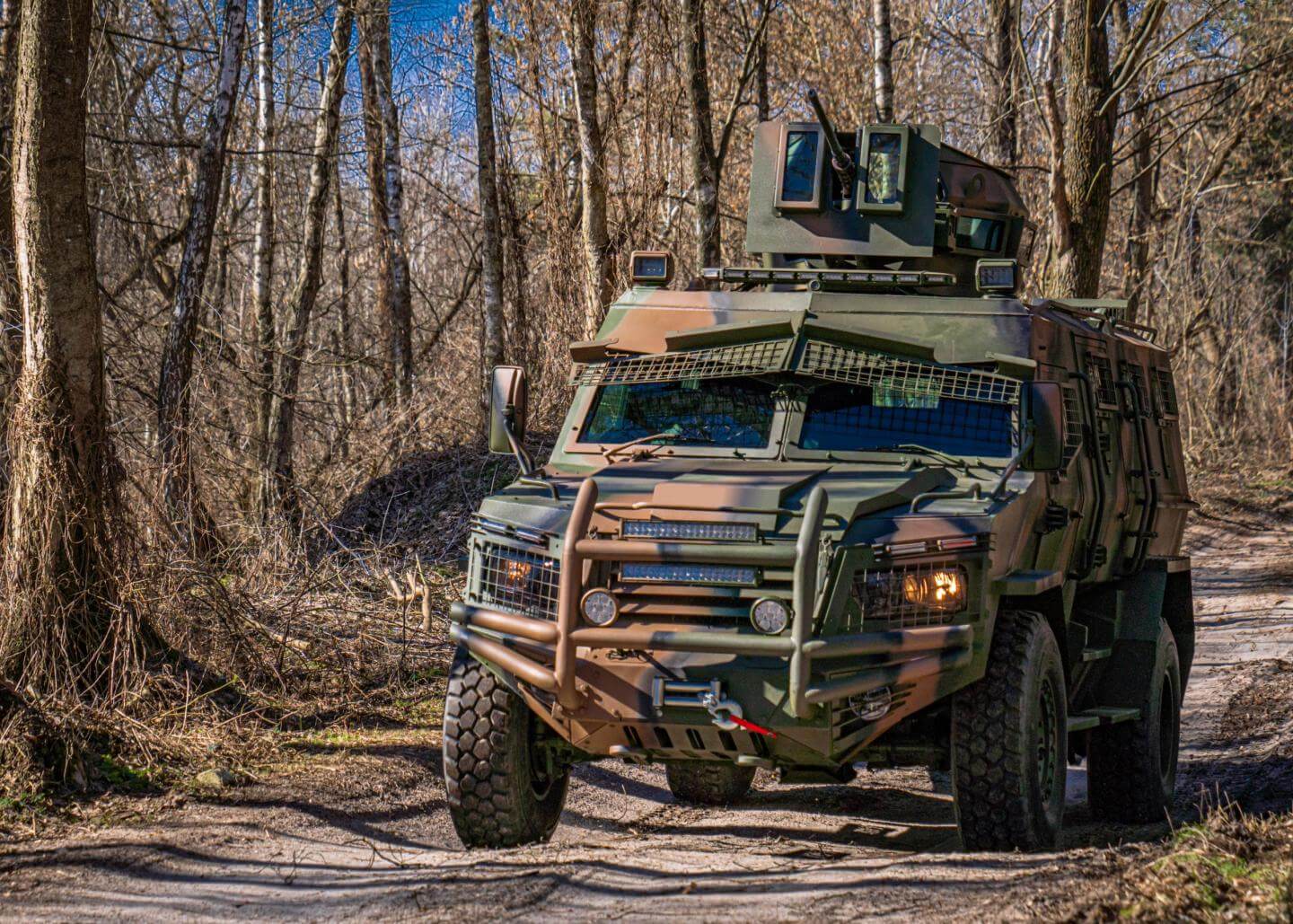

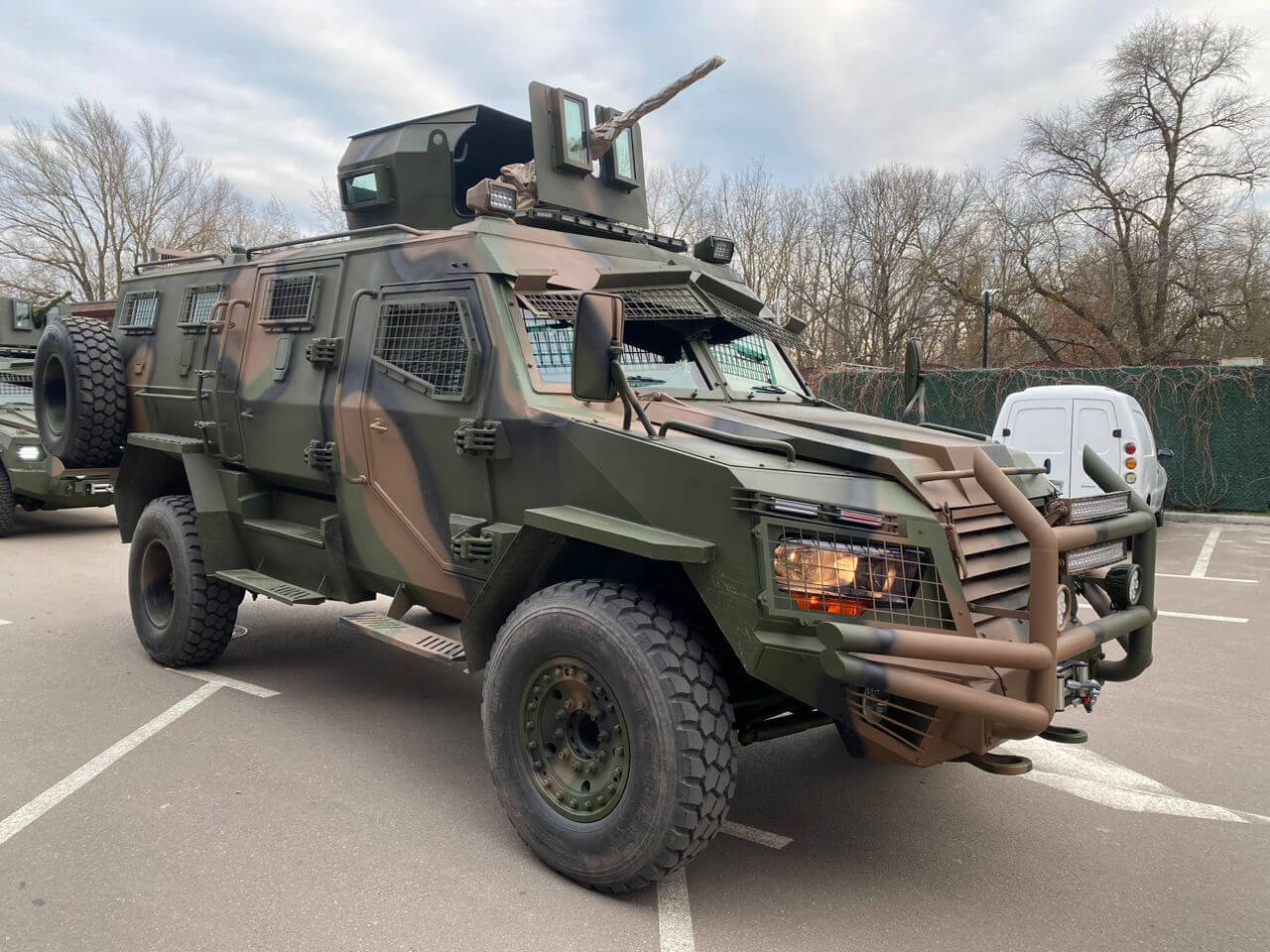

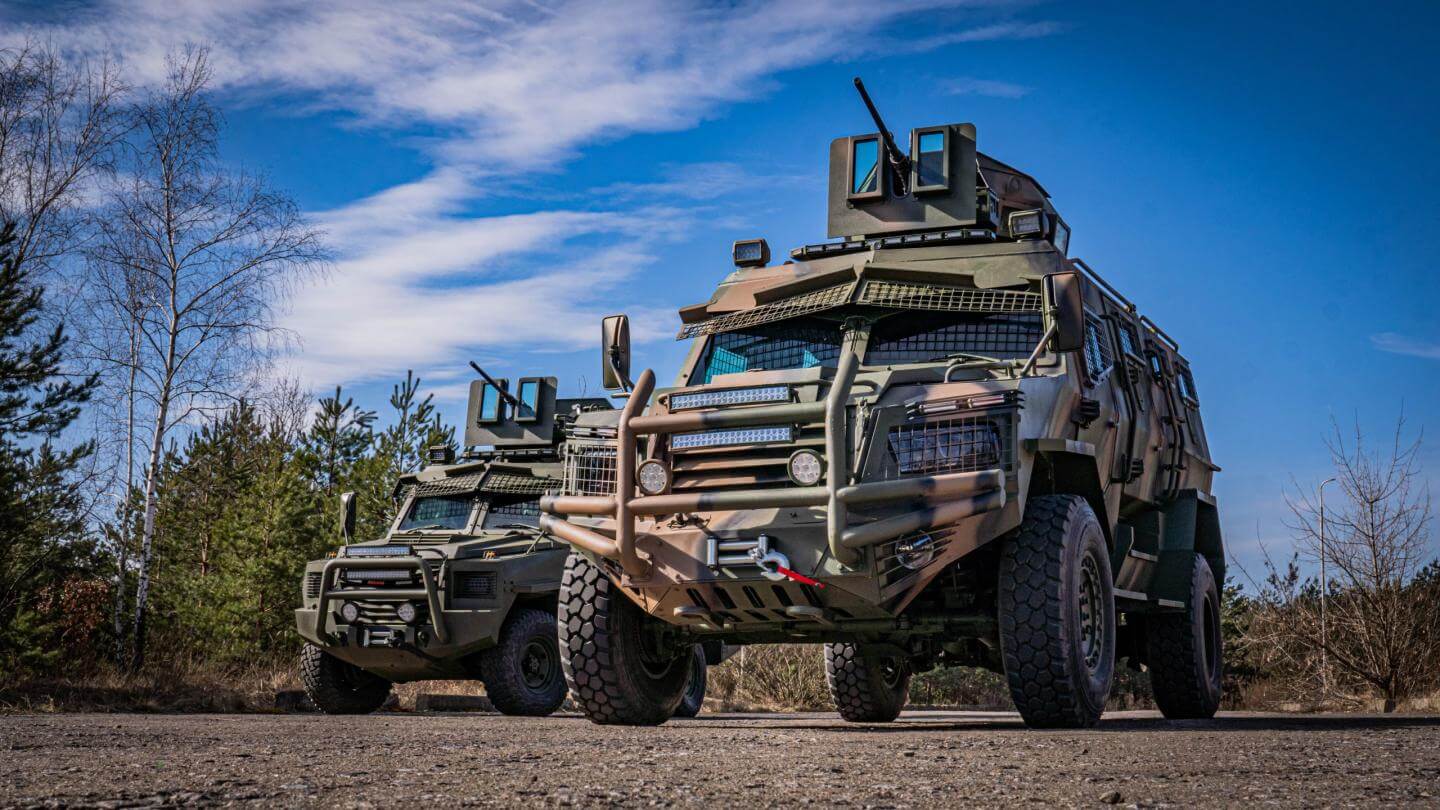

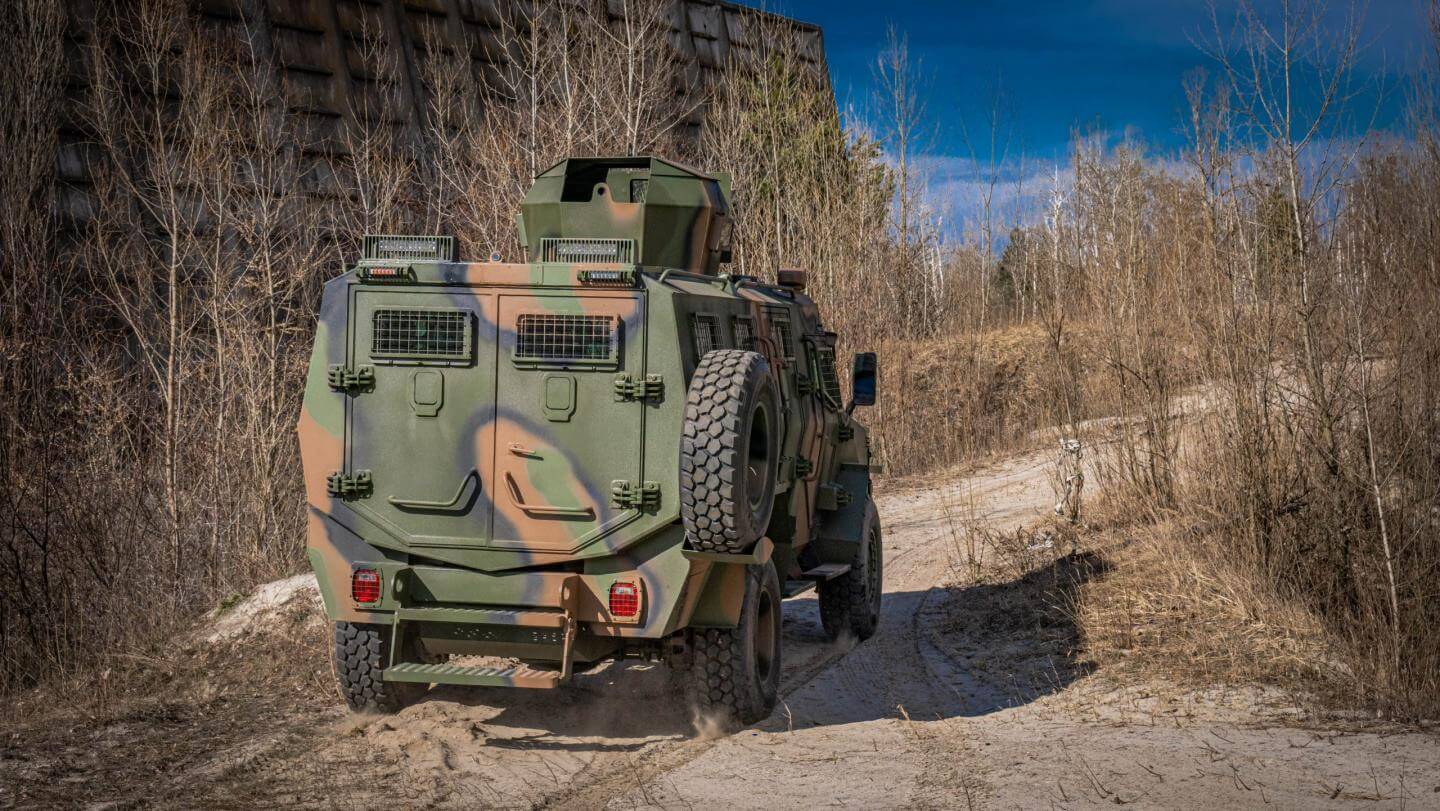

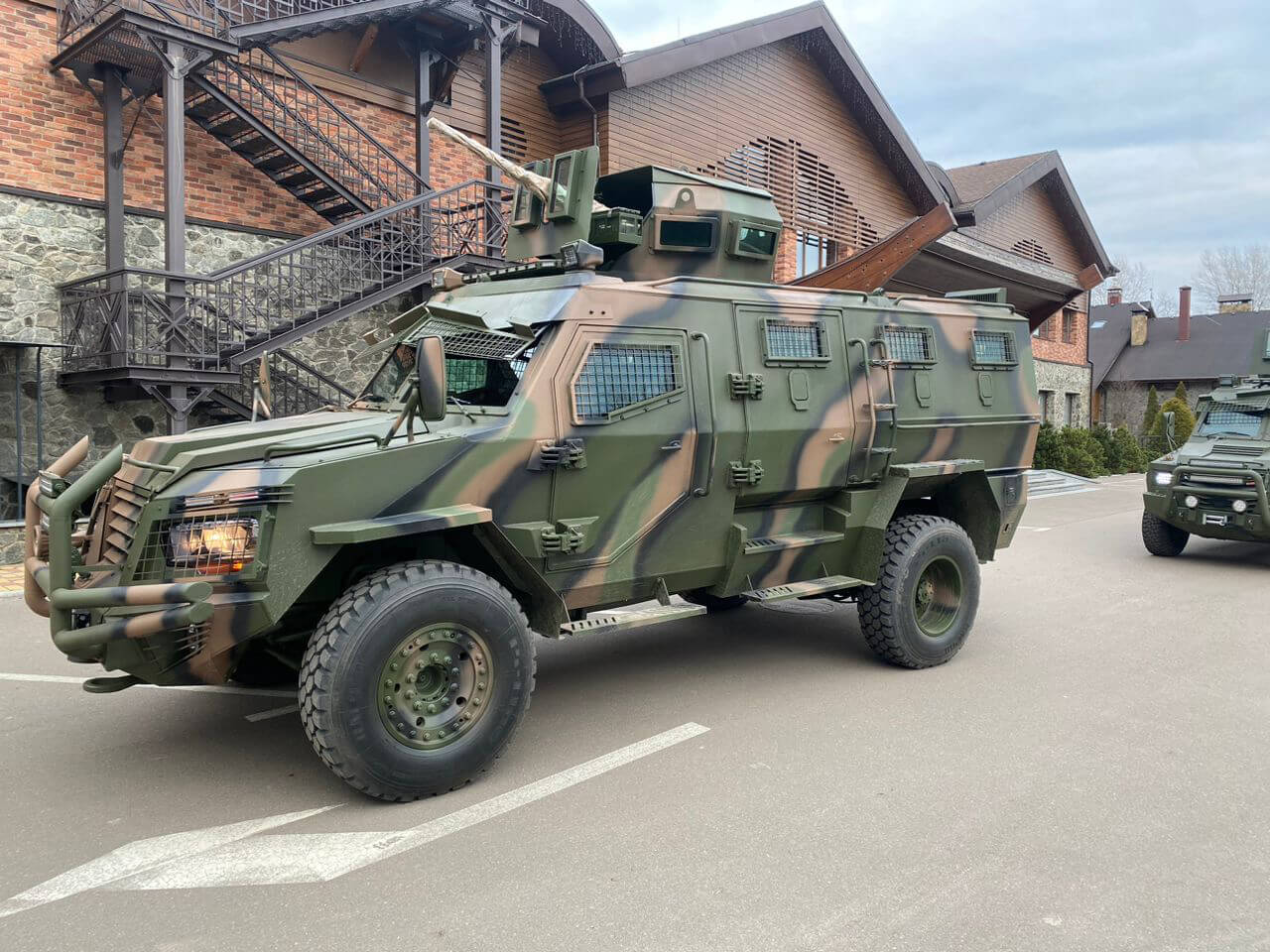

MAC - DI
MAC – DI "Infantry"
Name car: MAC-DI
Basic chassis: DODGE RAM 5500 – 144.5 WB – CHASSIS WITH ONE CAB
Level reservation: CEN level B7 and 4569 STANAG II
Year: 2023
Engine and transmission
Engine Type: 6.7L L6 Cummins Turbo Diesel
Number of cylinders: 6
Wheel formula: 4x4
Engine power: 345 hp. at 2400 rpm (rpm)
Torque 1017 Nm (750 lb-ft) at 1500 rpm
The capacity of the fuel tank is 280 liters (double tanks). Main: 83 l, additional: 197 l.
Transmission type: Aisin 6-speed automatic transmission
Number of gears: 6 front and 1 rear
Number of cylinders: 6
Wheel formula: 4x4
Engine power: 345 hp. at 2400 rpm (rpm)
Torque 1017 Nm (750 lb-ft) at 1500 rpm
The capacity of the fuel tank is 280 liters (double tanks). Main: 83 l, additional: 197 l.
Transmission type: Aisin 6-speed automatic transmission
Number of gears: 6 front and 1 rear
Suspension and braking system
Suspension: reinforced springs, springs, shock absorber struts, anti-roll bar
Cargo capacity: 10,000 kg.
Type of brakes: disc, ventilated
ABS: yes
Cargo capacity: 10,000 kg.
Type of brakes: disc, ventilated
ABS: yes
Wheels and tires
Wheel type: 20″ military type
"Run-Flat" system: military type; installed on all wheels, including the spare
Size: 335/80 R20 MPT81 Continental
Number of wheels: 4 + spare
"Run-Flat" system: military type; installed on all wheels, including the spare
Size: 335/80 R20 MPT81 Continental
Number of wheels: 4 + spare
Overall dimensions and weight of the car
Length: 6562 mm
Height: with tower: 3350 mm, without tower: 2665 mm
Width: 2764 mm
Wheelbase: 3670 mm (144.5 in)
Gross mass (without cargo and crew); With tower 8730 kg, without tower: 8410 kg
Ground clearance: 360 mm
Front overhang angle: 41°
Rear overhang angle: 26°
Height: with tower: 3350 mm, without tower: 2665 mm
Width: 2764 mm
Wheelbase: 3670 mm (144.5 in)
Gross mass (without cargo and crew); With tower 8730 kg, without tower: 8410 kg
Ground clearance: 360 mm
Front overhang angle: 41°
Rear overhang angle: 26°
Salon
Total number of seats: 10 people, including the driver
Complete set of seats: 2 x – in the cabin / 2 x – behind the seats in the cabin / 6 x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 6x on the sides / 2x on the back
Emergency hatch: 3x: 1x combined with the machine gun tower, 2x located in the rear part of the cabin
Machine gun turret: 360° rotation. Mechanical 0 mm
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4x on the sides / 1x at the back, 2-leaf on hinges
Fire extinguisher: powder 4.5 kg
Complete set of seats: 2 x – in the cabin / 2 x – behind the seats in the cabin / 6 x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 6x on the sides / 2x on the back
Emergency hatch: 3x: 1x combined with the machine gun tower, 2x located in the rear part of the cabin
Machine gun turret: 360° rotation. Mechanical 0 mm
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4x on the sides / 1x at the back, 2-leaf on hinges
Fire extinguisher: powder 4.5 kg
