MAC - FI

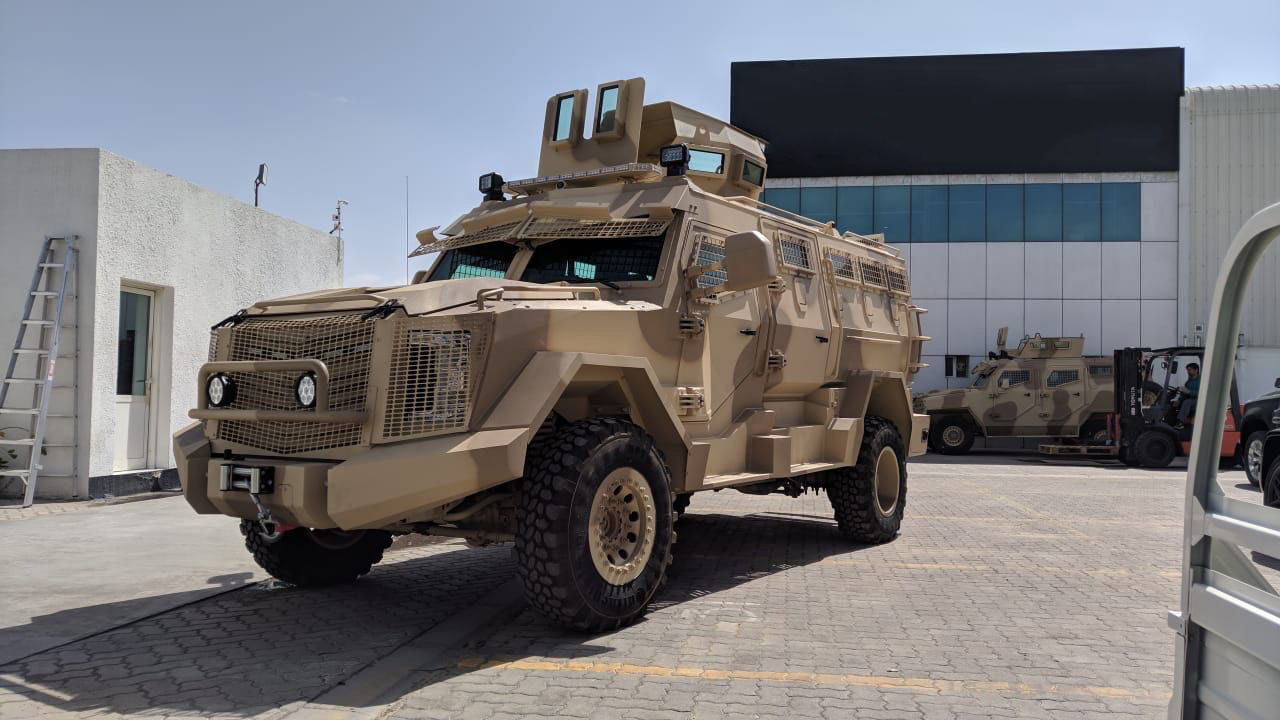

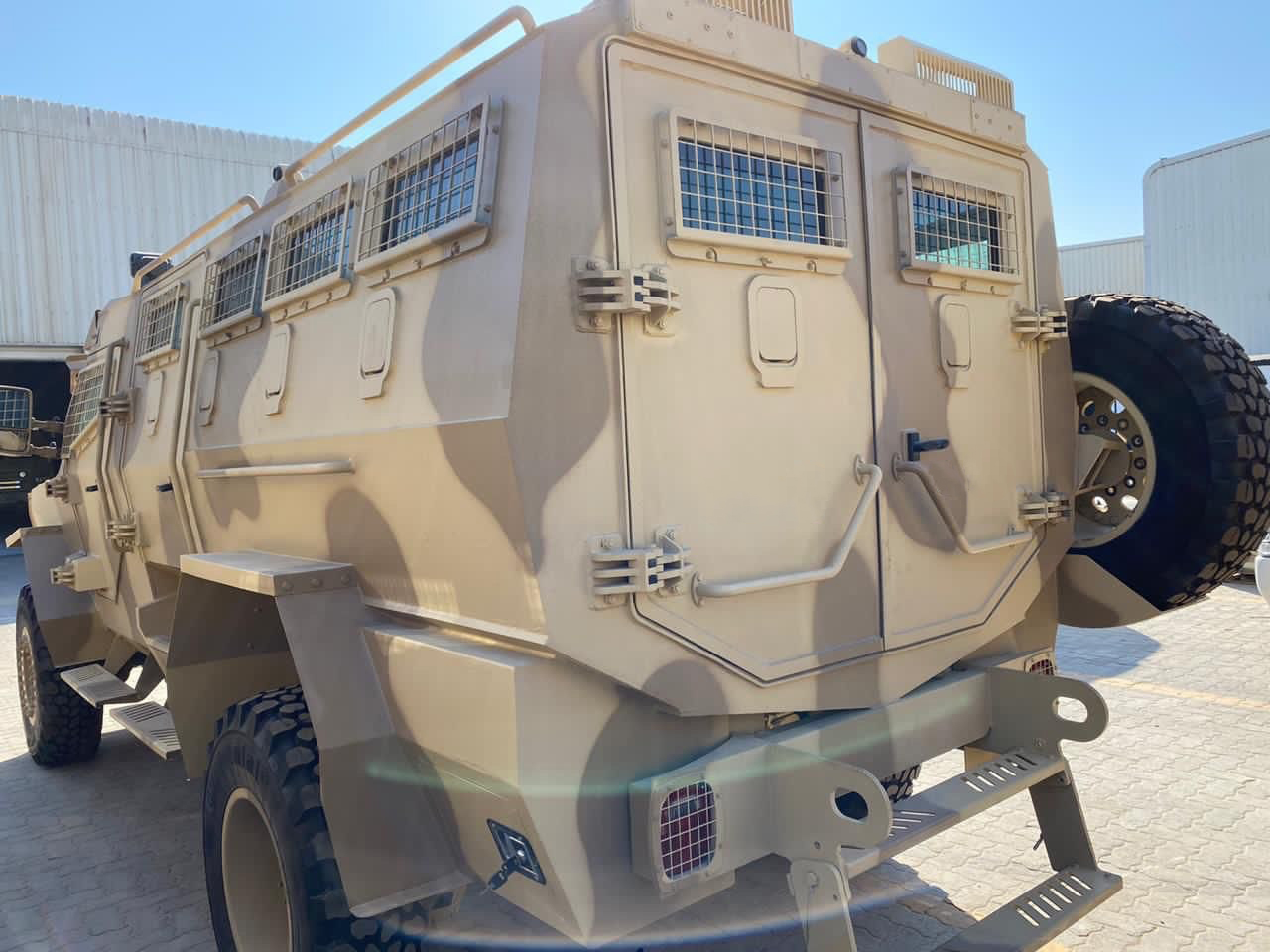

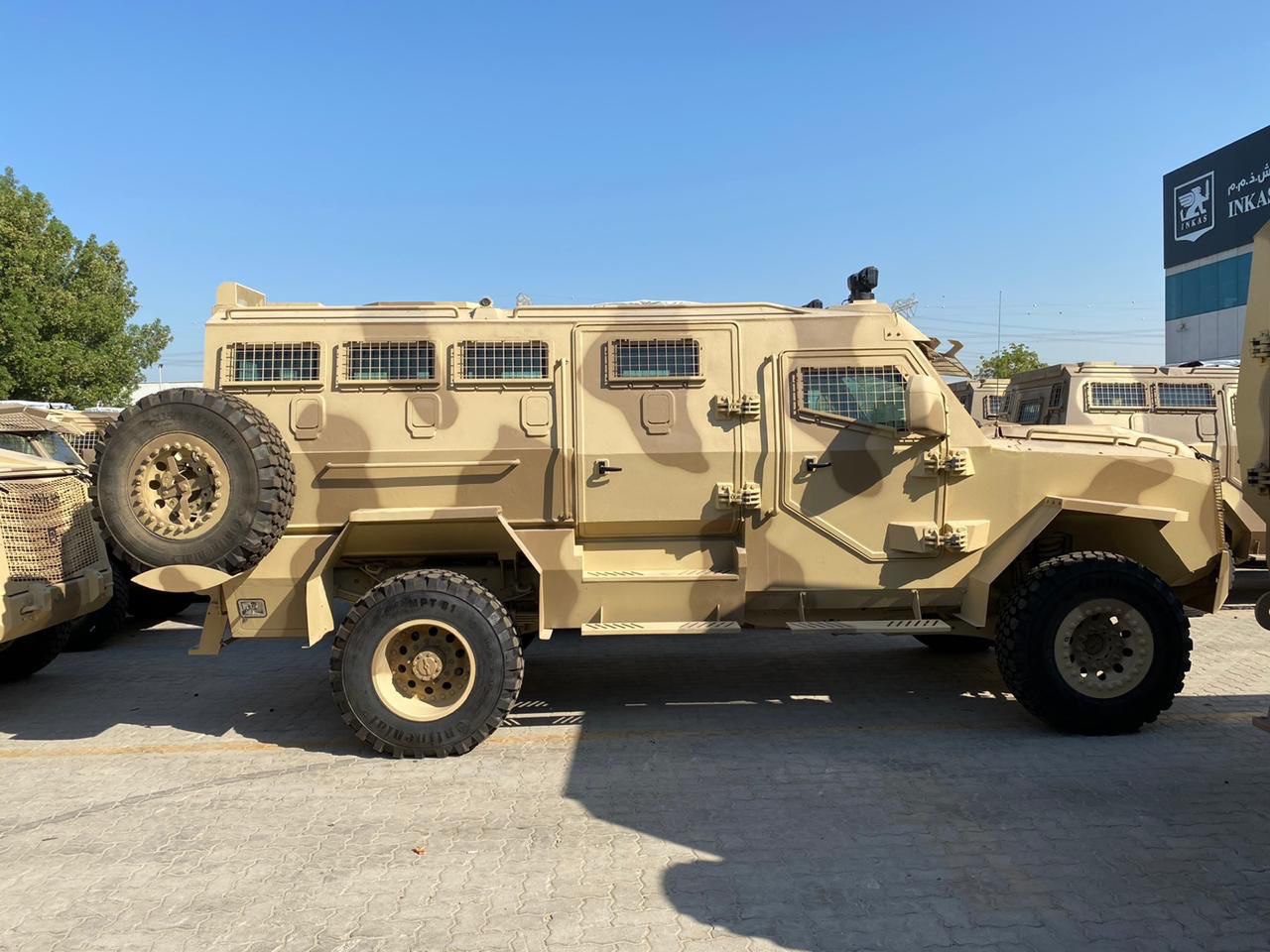

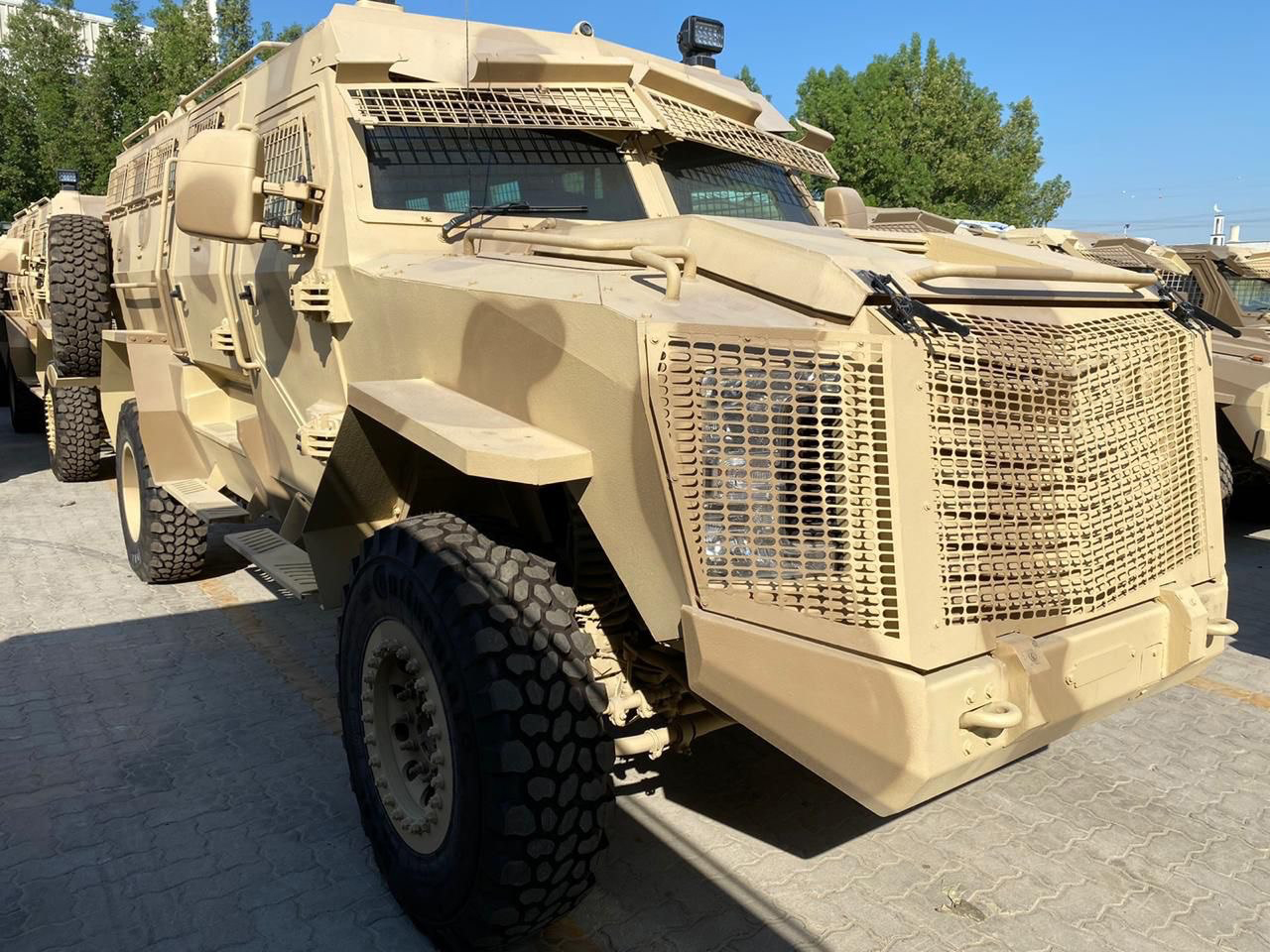

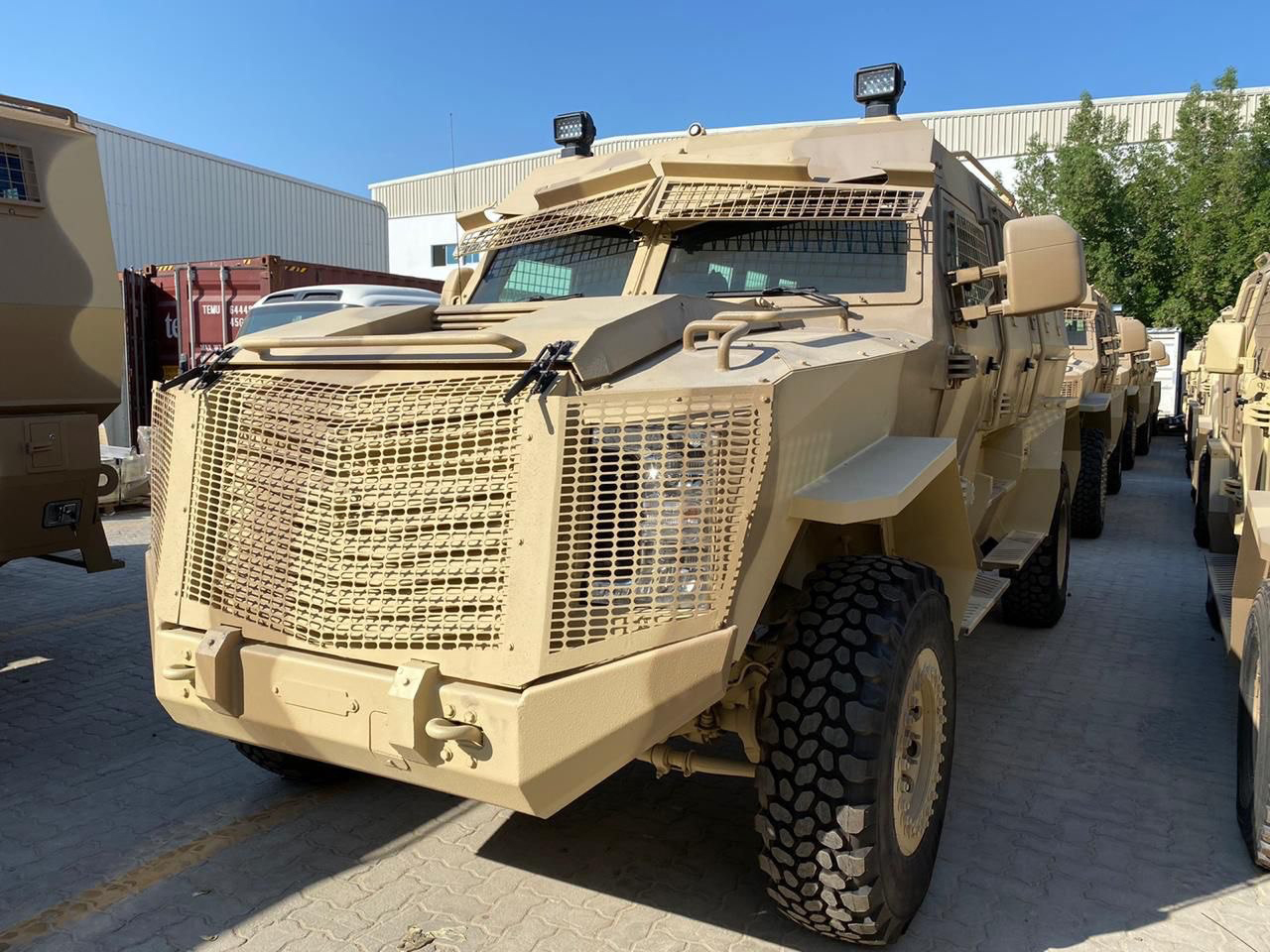

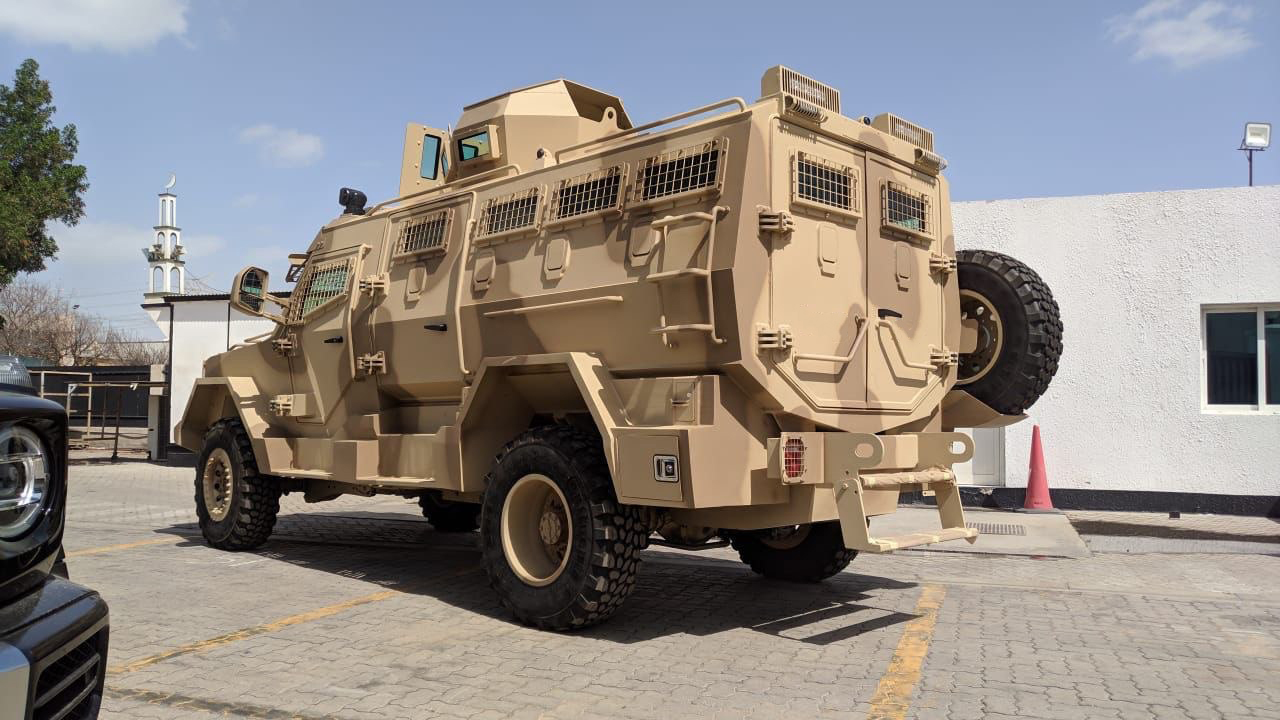

MAC – FI "Infantry"
Name car: MAC-FI
Basic chassis: Ford F550 – 145” WB-CHASSIS Z one CABIN (USA)
Level armor: CEN level B7 and 4569 STANAG II
Year: 2023
Engine and transmission
Engine Type: 6.7L Power Stroke® – V8 Turbo Diesel
Number of cylinders: 8
Wheel formula: 4x4
Power: 330 hp. at 2400 rpm
Torque 1017 Nm (750 lb-ft) at 1500 rpm
Fuel tank capacity: 252 liters (twin tanks). Main: 152 l, additional: 100 l.
Transmission type: TorqShift® / SelectShift® 6-speed automatic transmission
Number of gears: 5 forward and 1 reverse.
Number of cylinders: 8
Wheel formula: 4x4
Power: 330 hp. at 2400 rpm
Torque 1017 Nm (750 lb-ft) at 1500 rpm
Fuel tank capacity: 252 liters (twin tanks). Main: 152 l, additional: 100 l.
Transmission type: TorqShift® / SelectShift® 6-speed automatic transmission
Number of gears: 5 forward and 1 reverse.
Suspension and braking system
Suspension – Reinforced springs, springs, shock absorber struts, anti-roll bar
Cargo capacity: 10,000 kg.
Type of brakes: disc, ventilated
ABS: yes
Cargo capacity: 10,000 kg.
Type of brakes: disc, ventilated
ABS: yes
Wheels and tires
Wheel type: 20″ military type
Run-Flat system
Military type. Installed on all wheels, including the spare
Size: 335/80 R20 MPT81 Continental
Number of wheels: 4 + spare
Run-Flat system
Military type. Installed on all wheels, including the spare
Size: 335/80 R20 MPT81 Continental
Number of wheels: 4 + spare
Overall dimensions and weight of the car
Length: 6448 mm
Height: with tower: 3325 mm; without tower: 2644 mm
Width: 2594 mm
Wheelbase: 3690 mm (145 inches)
Full weight (without cargo and crew): with tower: 9040 kg; without tower: 8720 kg
Ground clearance: 360 mm
Front overhang angle: 41.43°
Rear overhang angle / with footrest: 30.05° / 19.27°
Height: with tower: 3325 mm; without tower: 2644 mm
Width: 2594 mm
Wheelbase: 3690 mm (145 inches)
Full weight (without cargo and crew): with tower: 9040 kg; without tower: 8720 kg
Ground clearance: 360 mm
Front overhang angle: 41.43°
Rear overhang angle / with footrest: 30.05° / 19.27°
Salon
Total number of seats: 10 people, including the driver
Complete set of seats: 2 x – in the cabin / 2 x – behind the seats in the cabin / 6 x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 8x on the sides / 2x on the back;
Emergency hatch: 3 x: 1 x combined with a machine gun tower, 2 x located in the aft part of the cabin;
Machine gun turret: 360° rotation, mechanical mode.
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4 on the sides / 1 on the back, 2-leaf on hinges;
Fire extinguisher: powder 4.5 kg
Complete set of seats: 2 x – in the cabin / 2 x – behind the seats in the cabin / 6 x – in the crew cabin
Safety belts: reinforced, 4-point
Holes: 8x on the sides / 2x on the back;
Emergency hatch: 3 x: 1 x combined with a machine gun tower, 2 x located in the aft part of the cabin;
Machine gun turret: 360° rotation, mechanical mode.
Air conditioning systems: 1x in the factory cabin / 1x additional in the staff cabin
Number of doors: 4 on the sides / 1 on the back, 2-leaf on hinges;
Fire extinguisher: powder 4.5 kg
