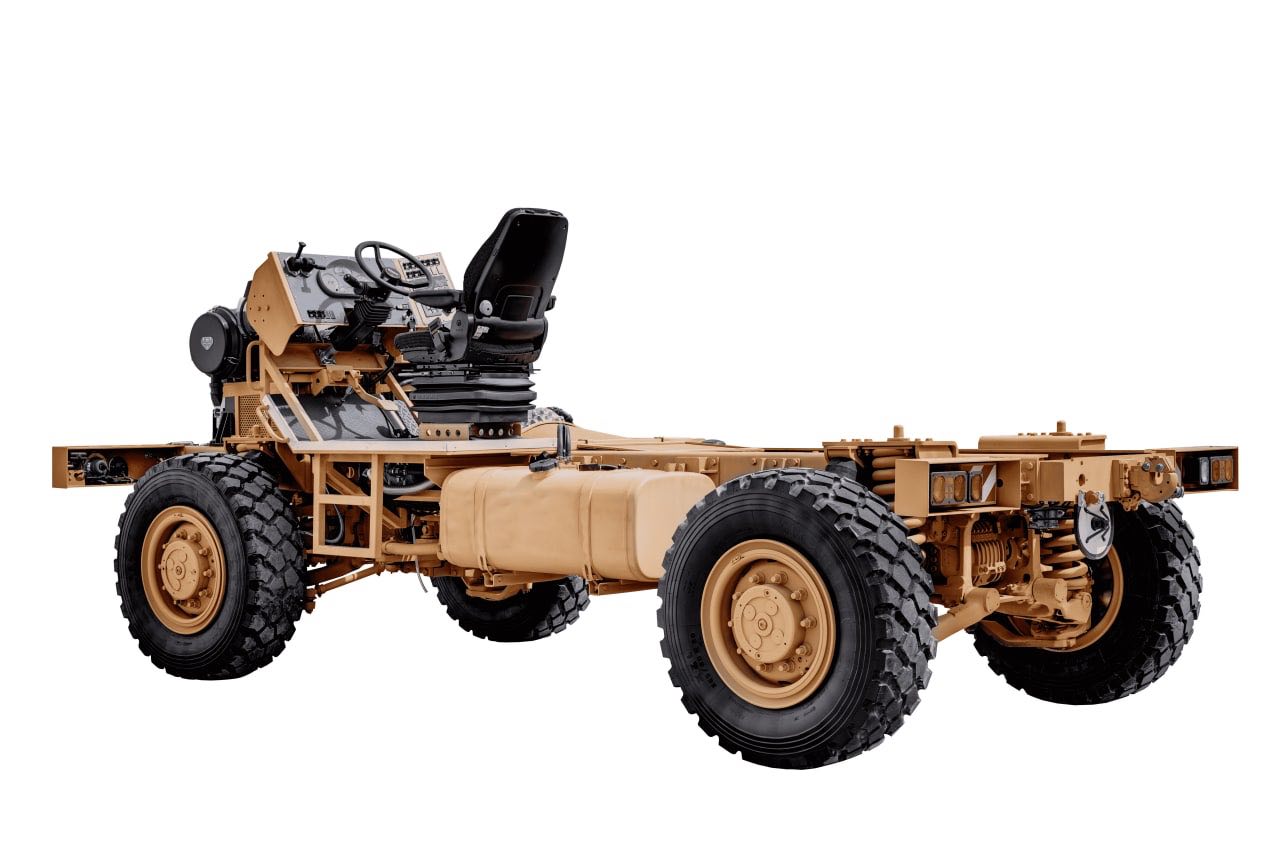

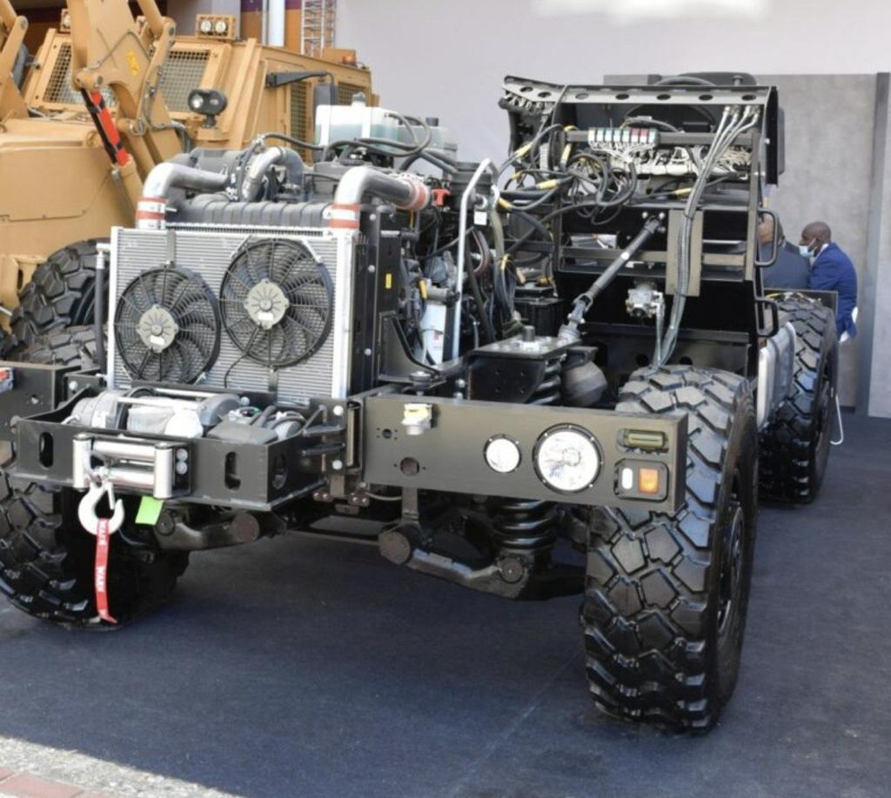

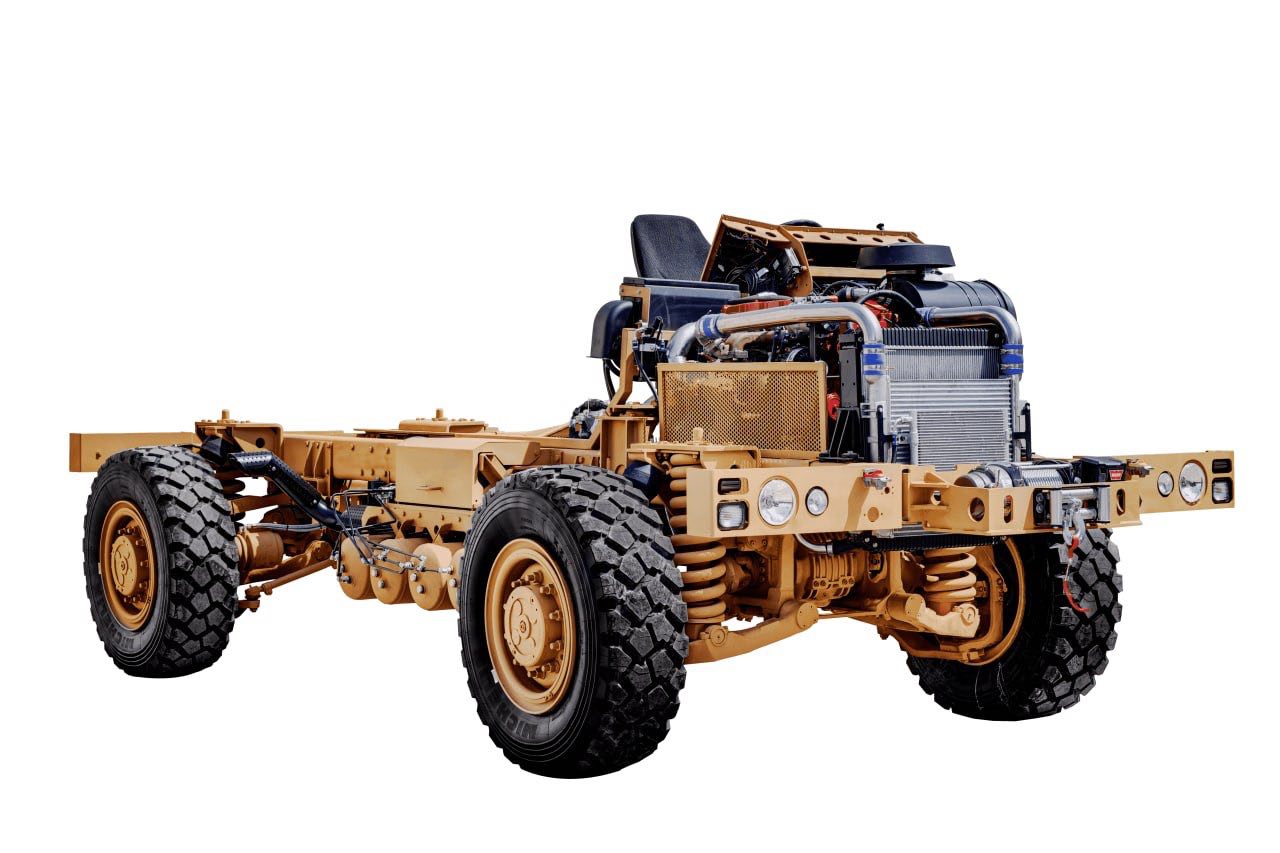

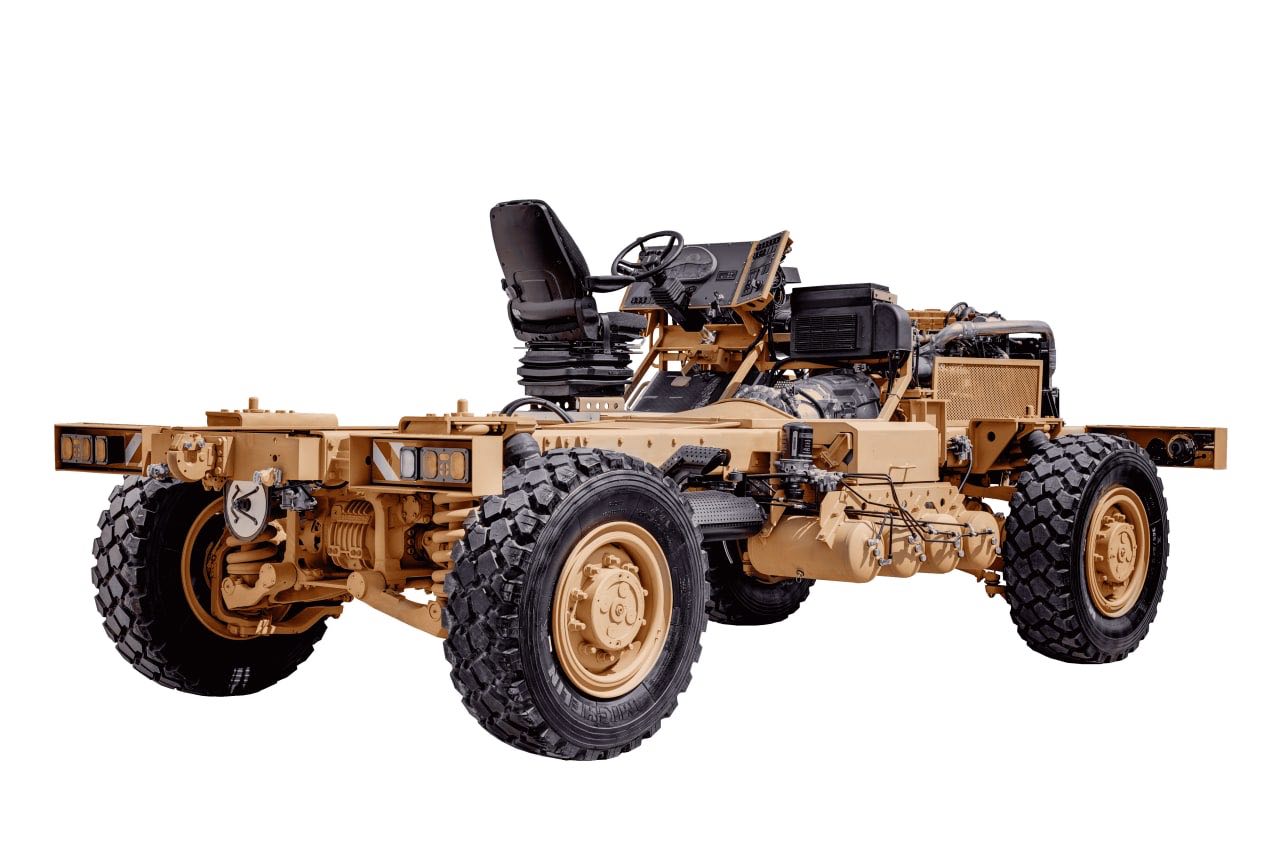

The 4x4 High Mobility Heavy Duty (HMHD) chassis is designed as a platform for various specialized equipment. It offers excellent manoeuvrability in challenging terrains. Heavy armoured protection on top of the chassis. Reliable chassis with low amortization costs.
The military-grade chassis is suitable for operation in the most demanding climatic conditions, in regions with extremely high and low ambient temperatures, increased humidity, or environmental dust.
The full-time four-wheel-drive chassis utilizes independent suspension and a tubular support frame. The unique features of the Concept chassis allow each wheel to move independently, providing enhanced manoeuvrability and maximum tire contact.
The three-dimensional solid frame, created by connecting the support tube and the ladder frame, is exceptionally resistant to twisting and bending. Additionally, the support tube frame protects against dust, moisture, and external mechanical damage (a maintenance-free design without torque distribution of the driveshaft) of the driveshafts, wheel distribution box, and differentials located inside.
The unique design of the chassis and independent suspension provides the vehicle with exceptional shock and vibration resistance, protects superstructures from twisting and loads, and allows for fast travel on uneven roads.
WHEELS
* Single tactical tires on all axles with CTIS
* Disks 20-10. 00V
* Tires 16.00 R20
• RUN-FLAT tires (Run-Flat tire is a pneumatic tire for vehicles designed to resist the effects of air loss during a puncture and allow the vehicle to continue moving at reduced speeds—up to 90 km/h (56 mph)—and for a limited distance—typically from 16 to 80 km (10 to 50 miles), depending on the tire type.
CABIN
• The kit includes a frame that holds the instrument panel, pedals, steering wheel, and seats on the chassis instead of the cabin.
• Other equipment is supplied as spare parts.
ELECTRICAL EQUIPMENT
• Nominal voltage is 24 V.
• 2x 12V, 180 Ah batteries.
• Generators 2x120 A/28 V.
